Specialised Avionics Components
Specialised advanced avionics components engineered for mission‑critical performance, enabling precise data acquisition, system integration with legacy and modern aerospace platforms, and application-specific engineering.
Specialised Avionics Components
Specialised advanced avionics components engineered for mission‑critical performance, enabling precise data acquisition, system integration with legacy and modern aerospace platforms, and application-specific engineering.

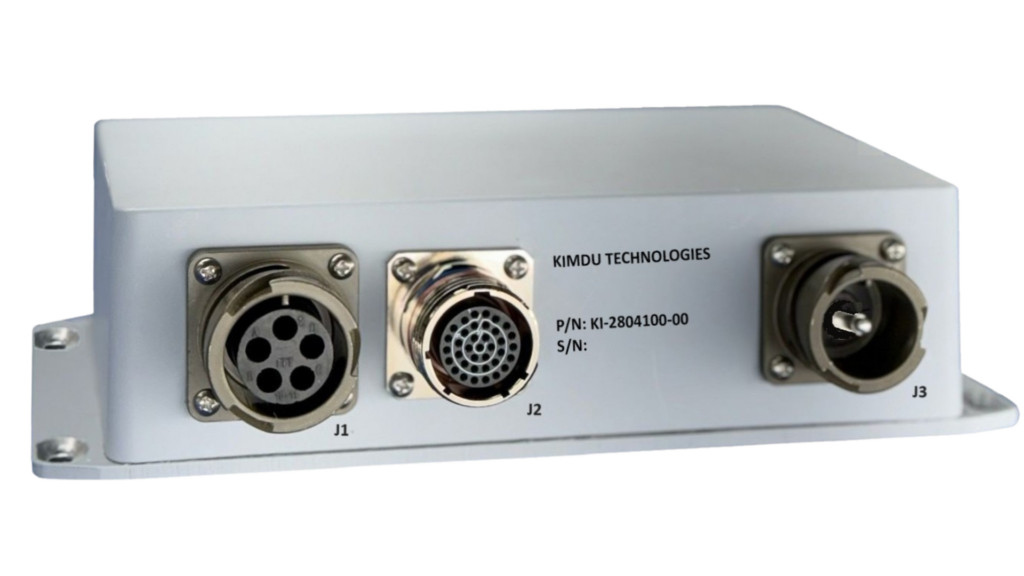

4-Channel, 100A Solid State Power Controller
- Safely switches power to four independent output channels, each rated up to 25A, with the option to parallel channels for increased current capacity.
- Operates from a nominal 28VDC source and meets MIL-STD-704 requirements for rugged, reliable performance in demanding environments.
- Offers versatile control via isolated RS-422 and discrete inputs, with optional interfaces including MIL-STD-1553, CAN 2.0, and Ethernet for seamless system integration.
- Implements continuous Built-In Test (BIT), advanced I²T protection algorithms, and real-time monitoring of voltage, current, and trip conditions for enhanced safety and diagnostics.
- Compact, robust design with MIL-38999 connectors and status outputs, ideal for mission-critical power management applications.

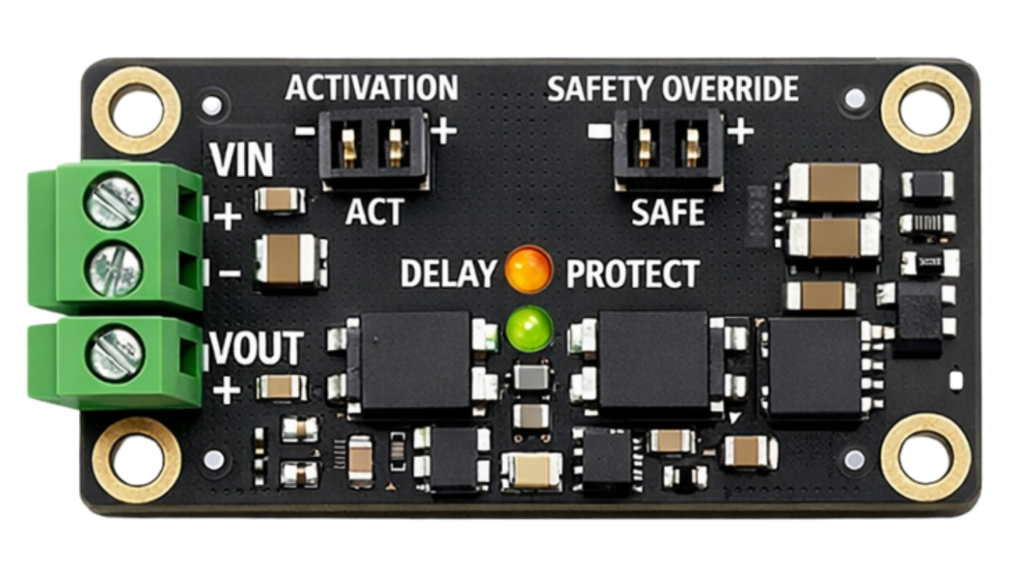

DigiSquibTM
- Enables safe and reliable remote switching of power sources, replacing traditional pyrotechnic switches for enhanced operational flexibility.
- Initiated via external voltage input, with self-powered operation and seamless transition to the switched power source after activation.
- Dual control inputs for activation and programmable safety override, including a secure protect window for robust fault prevention.
- Supports both normal and inductive loads, with programmable delay timing and reusable, flight-tested design for demanding environments.
- Available in multiple models and mounting options (SMT or thru-hole), with optional serial interface and customisation to suit specific application requirements.

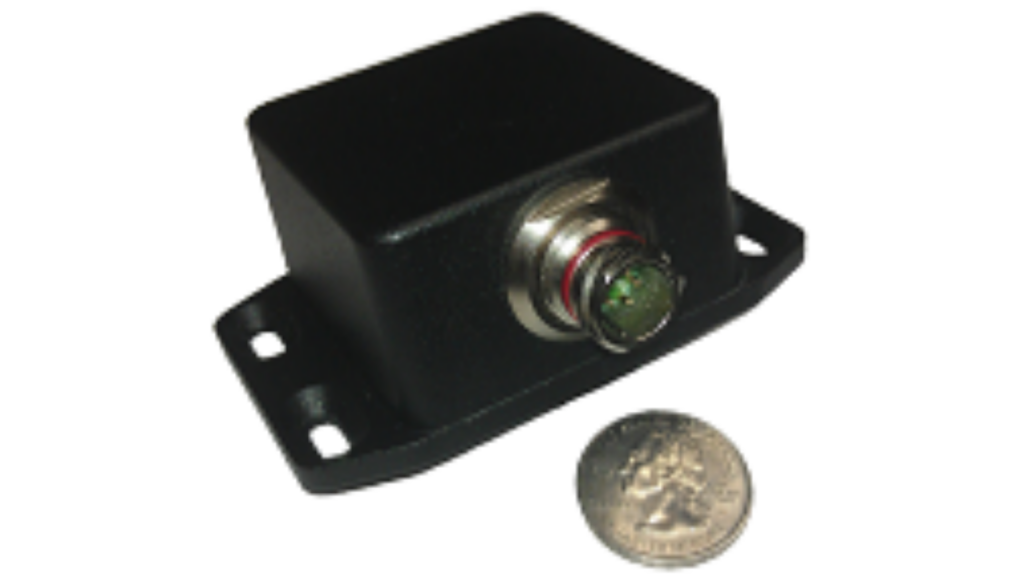

MIL-704 DC/DC Power Module
- Rugged, high-efficiency DC/DC power supply designed for industrial and harsh environments, fully compatible with MIL-STD-704 standards.
- Available in single or multiple output configurations, supporting standard voltages (12V, 5V, 3.3V) and custom voltage options to meet specific application requirements.
- Operates reliably across a wide temperature range (-40°C to +71°C), ensuring dependable performance in extreme conditions.
- Compact, adaptable mechanical design with miniature MIL-38999 or sealed D-Type connectors, allowing easy integration and customisation.
- Built-in reverse polarity protection and semi-custom module options for enhanced safety and flexibility in mission-critical systems.

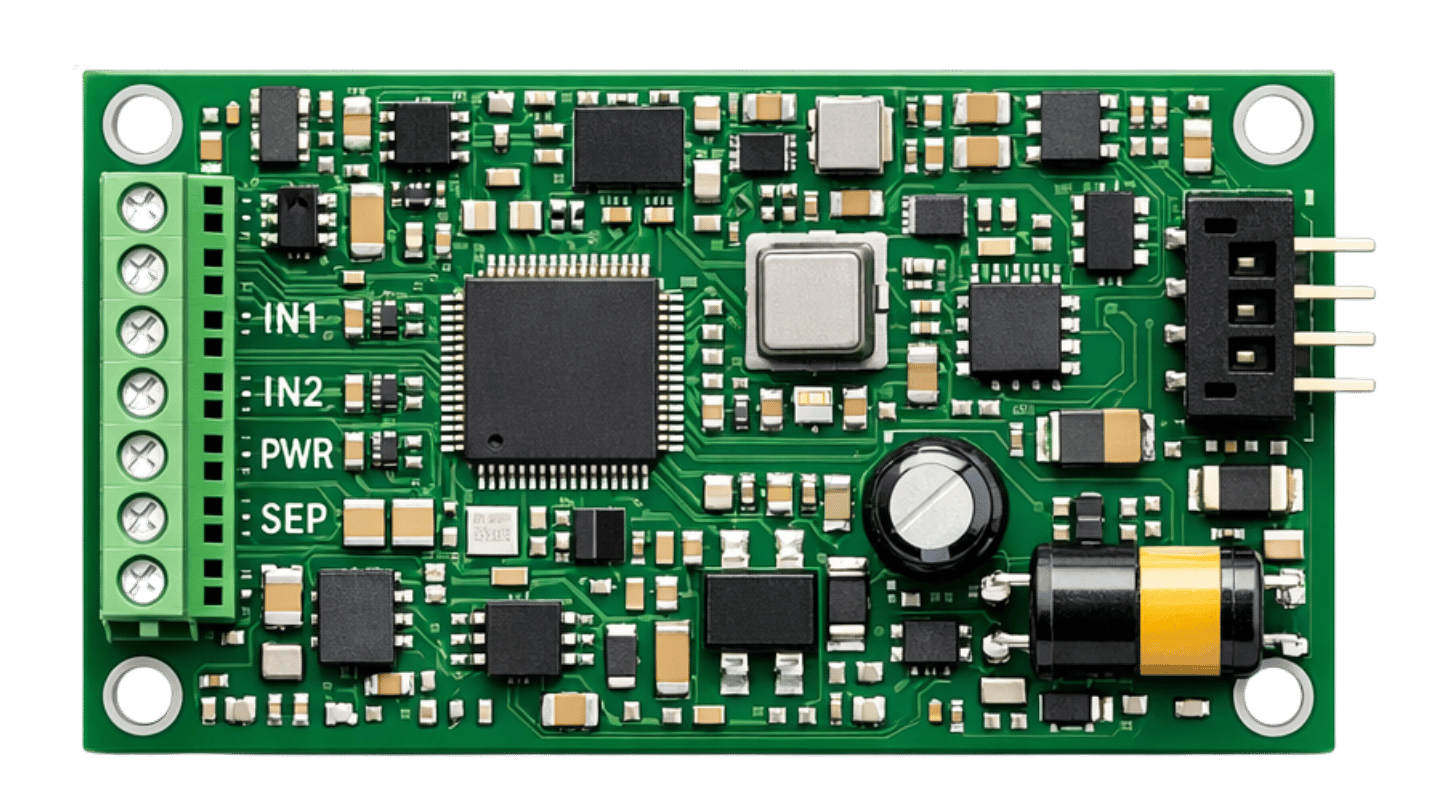

Programmable Electronic Safe & Arm (ES&A) and Initiator Boards
- Replaces traditional electro-mechanical Safe & Arm devices with advanced microcontroller-based electronic solutions for enhanced safety and reliability.
- Integrates on-board MEMS accelerometer and multiple discrete inputs (e.g., umbilical separation, power status) for comprehensive system monitoring and control.
- Supports programmable delay periods and customizable timing variables, enabling precise sequencing and tailored safety protocols.
- Output pulse generator stage remains protected until all safety conditions are met, ensuring secure initiation and fault prevention.
- Compact, adaptable design with serial communications port, available in custom and semi-custom configurations to meet specific electrical and size requirements; flight-tested for demanding applications.

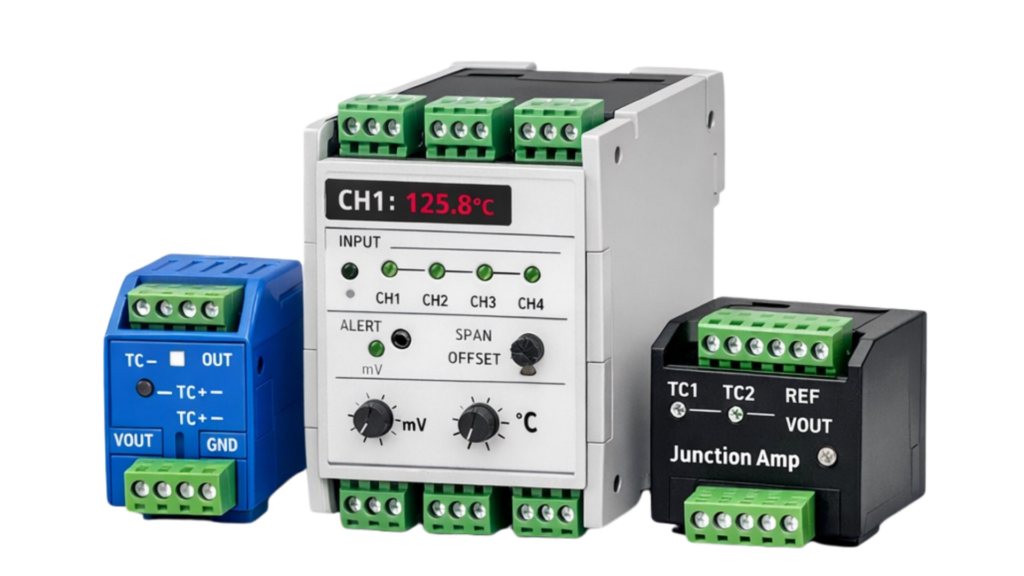

Thermocouple Amplifiers, High Accuracy/High Temperature Measurements, Junction Amplifiers
- Achieve precise, high-accuracy temperature readings in extreme environments.
- Compatible with a wide range of thermocouple types and junction setups.
- Reliable signal amplification for stable, repeatable measurements.
- Robust performance in high-temperature and industrial applications.
- Compact, easy-to-integrate designs for seamless system upgrades.
